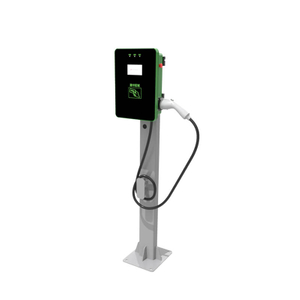

22kW-44kW AC EV Charger

The 22kW-44kW AC EV charging pile is manufactured by Rockwill in China. It covers a small area,is quick to deploy,and has large charging power. It is suitable for residential areas, urban special charging stations and other occasions requiring AC charging.

Availability:

Quantity:


Inquire Add to Basket

Product Description

The 22kW-44kW AC EV charging pile is manufactured by Rockwill in China. It covers a small area,is quick to deploy,and has large charging power. It is suitable for residential areas, urban special charging stations and other occasions requiring AC charging.

Features

1. Cost Effective

Compact design with one power module

Private use with competitive price

SiC technology for improving conversion efficiency

2. Operation Friendly

Friendly interface display

Start/Stop charging by RFID card

RFID card registration on the display panel

3. Safe Protection

Anti-corrosion and weather proof

Current and voltage protection

Short circuit protection

Ground protection

Over/under temperature protection

Technical Data

Specification	Model	RWAC-WZ-22kW/400V	RWAC-WZ-22kW/400V	RWAC-WZ-44kW/400V
AC Nominal Input	Phases/Lines	3 phase + netural+ PE	3 phase + netural+ PE	3 phase + netural+ PE
	Voltage	400V	400V	400V
	Frequency	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz
AC Nominal Output	Voltage	400V	400V	400V
	Current	32A	16A+16A	32A+32A
	Power	22kW	22kW	44kW
Structure Design	Housing Material	Galvanized steel	Galvanized steel	Galvanized steel
	Front Panel	Tempered glass	Tempered glass	Tempered glass
	Installation Method	Wall-mount/Floor-stand	Wall-mount/Floor-stand	Wall-mount/Floor-stand
	Floor-stand Pillar	Galvanized steel	Galvanized steel	Galvanized steel
	Charge Connector	Type 2	Type 2	Type 2
	Cable Length	3.5M (Optional)	3.5M (Optional)	3.5M (Optional)
	LED Indicator	Green/Yellow/Red color for different status	Green/Yellow/Red color for different status	Green/Yellow/Red color for different status
	LCD Screen	Display of charging data	Display of charging data	Display of charging data
	Start Mode	Plug&Play/RFID card/App	Plug&Play/RFID card/App	Plug&Play/RFID card/App
	Emergency Stop Button	Yes	Yes	Yes
Environment	Operating Temperature	- 30~ + 60℃	- 30~ + 60℃	- 30~ + 60℃
	Working Humidity	5%~95% without condensation	5%~95% without condensation	5%~95% without condensation
	Working Altitude	＜2000M	＜2000M	＜2000M
	Protection Grade	IP54	IP54	IP54
	Application Site	Indoor/Outdoor	Indoor/Outdoor	Indoor/Outdoor
	Cooling Method	Natural cooling	Natural cooling	Natural cooling
	Ingress Protection	IP65	IP65	IP65
	Impact Protection	IK10	IK10	IK10
Safety	Multiple Protection	Over/Under voltage protection,Overload protection,Short circuit protection,Current leakage protection,Grounding protection,Surge protection,Over/Under temperature protection	Over/Under voltage protection,Overload protection,Short circuit protection,Current leakage protection,Grounding protection,Surge protection,Over/Under temperature protection	Over/Under voltage protection,Overload protection,Short circuit protection,Current leakage protection,Grounding protection,Surge protection,Over/Under temperature protection
	MTBF	100,000 hours	100,000 hours	100,000 hours
	Safety Standard	IEC 61851-1:2017,IEC 62196-2:2016	IEC 61851-1:2017,IEC 62196-2:2016	IEC 61851-1:2017,IEC 62196-2:2016
	Warranty	1 years	1 years	1 years
Communication	Network Gateway	Wi-Fi/Ethernet/3G/4G communication	Wi-Fi/Ethernet/3G/4G communication	Wi-Fi/Ethernet/3G/4G communication
Communication	Communication Protocol	OCPP1.6(JSON)	OCPP1.6(JSON)	OCPP1.6(JSON)
Package Information	Product Dimension	400280130MM	400280130MM	400280130MM
Package Information	External Packing	Carton	Carton	Carton
