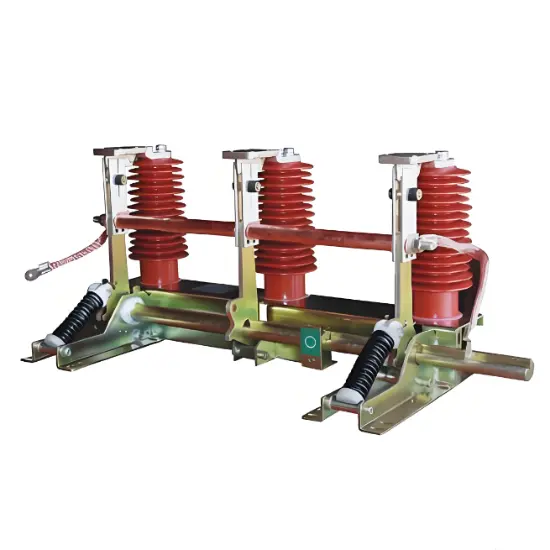

High Reliability Indoor High-Voltage Grounding Switch 24kV
Key attributes
| Brand | ROCKWILL |
| Model NO. | High Reliability Indoor High-Voltage Grounding Switch 24kV |
| Rated voltage | 24kV |
| Rated frequency | 50/60Hz |
| Rated short-time withstand current | 31.5kA |
| Series | JN15 |
Product descriptions from the supplier
Description
Product Introduction
The JN15-24/31.5 Indoor High-Voltage Grounding Switch is our latest-developed safety device, designed to meet the strict requirements of GB1985-2004 and IEC62271-102:2002 standards. It is engineered for 24kV, 50/60Hz three-phase AC indoor power systems.
This grounding switch provides a reliable earthing path for maintenance, discharging residual voltage and preventing accidental re-energization. With its 31.5kA short-circuit closing capability, it protects other switchgear components from damage during faults. It can be integrated with various high-voltage switchgear cabinets or used independently for grounding protection during equipment maintenance.
Core Advantages
- Globally Certified Compliance: Fully compliant with both GB and IEC international standards, ensuring seamless integration into global power projects and easy acceptance by overseas clients.
- Advanced Compact Design: Optimized for limited indoor spaces, with a streamlined structure that simplifies installation and reduces footprint.
- High Fault Resilience: Rated for 31.5kA short-circuit closing, providing robust protection for your switchgear during fault conditions.
- Wide Environmental Adaptability: Operates reliably in extreme temperatures from -25°C to +40°C, with seismic resistance up to 8 degrees, suitable for challenging indoor environments.
- Low Maintenance & Durability: Simple mechanical structure with high-quality components ensures long service life and minimal upkeep, reducing lifecycle costs.
Technical & Environmental Specifications
|
Serial Number
|
Item
|
Unit
|
Data
|
|---|---|---|---|
|
1
|
Rated Current
|
kA
|
24
|
|
2
|
Rated Short - time Withstand Current
|
kA
|
31.5
|
|
3
|
Rated Short - circuit Making Current
|
kA
|
80
|
|
4
|
Rated Peak Withstand Current
|
kA
|
80
|
|
5
|
Rated Short - circuit Duration
|
s
|
4
|
|
6
|
Rated Insulation Level
|
kV
|
1min Power - frequency Withstand Voltage: 65; Relative to Ground and Between Phases: 65; Lightning Impulse Voltage: 125
|
|
7
|
Mechanical Life
|
Times
|
2000
|
Application Scenarios
- 24kV Indoor Substations: Essential safety component for earthing high-voltage equipment during maintenance.
- Industrial Switchgear Integration: Works with a wide range of high-voltage cabinets to enhance the safety of factory and mine power distribution systems.
- Critical Facility Power Protection: Ideal for data centers, hospitals, and commercial buildings requiring reliable grounding for 24kV systems.
- Power Grid Retrofits: A cost-effective upgrade for legacy switchgear to meet modern safety standards.
- Standalone Maintenance Use: Provides flexible grounding protection for temporary power systems or remote distribution sites.
Procurement & Support
- Customization: Solutions for high-altitude projects or specific environmental requirements.
- Documentation: Complete certification packages including IEC/GB test reports and English operation manuals.
- After-Sales: 24/7 technical support, genuine spare parts supply, and on-site installation guidance.
