Outdoor Gas Insulated Ring Main Unit-22kV

Our company's delivery is guaranteed and the quality of the Complete switchgear, Indoor metal Armored Fixed switchgear, RMU switchgear for substation is absolutely guaranteed after the rough inspection, fine inspection and packaging delivery. Looking to the future, we believe that as long as we adhere to the values of honesty and trustworthiness and vigorously promote the pragmatic and professional entrepreneurial spirit, we will surely achieve our goals as soon as possible. Our company takes the customer as the center, expands the service scope, besides continues to do the after-sale service, simultaneously pays attention to the pre-sale service.

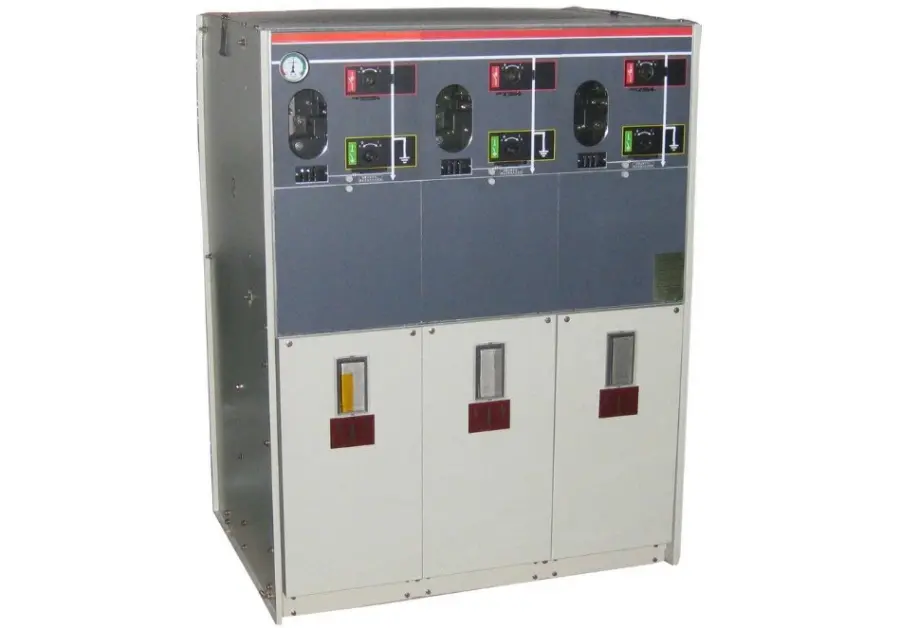

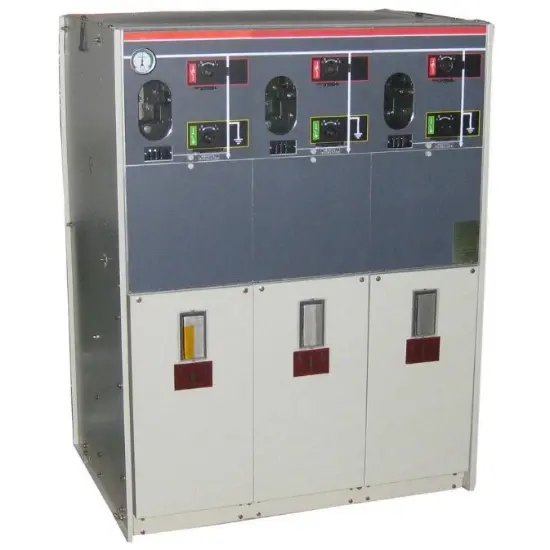

22kV Electrical Ring Main Unit (RMU)

22kV electrical ring main unit (RMU)switchgear refers to the ring network power distribution network. Its main function is to realize dual-loop or multi-loop power supply to improve the reliability of power supply.

Because of its small size, safe operation and simple structure, it is widely used in buildings, ports, shopping centers and railways.

The ring main unit switchgear has two feeder forms, namely the incoming unit and the outgoing unit. The incoming unit is connected to the high-voltage side, and the outgoing unit (usually an F module) is connected to the distribution transformer. It can protect the secondary transformer from transients on the load or power supply side.

22kV RMU is a device used in electrical distribution systems, mainly to isolate and control the electrical energy of high-voltage lines, in order to ensure the safety and stable supply of electricity. Its characteristic is that it has various advantages such as high reliability, safety, and applicability, and is an indispensable part of modern power systems.

The composition structure of the 22kV ring network cabinet is relatively complex, usually consisting of various components such as the main switch, load switch, fuse, and voltage and current sensors. The main switch is mainly responsible for controlling the on-off of high-voltage lines, while the load switch is used to control the flow of electricity during the transmission process, achieving regulation and control of the electrical system. A fuse is a protective measure that can cut off the circuit in a short period of time when abnormal situations such as overcurrent or short circuit occur in the system, ensuring the safe and stable operation of the power system. Voltage and current sensors can achieve the judgment and monitoring of current and voltage information, and have important sensing and feedback functions.

The 22kV ring network cabinet has a wide range of applications, mainly used in various power systems such as urban power grids, industrial and mining enterprises, and rural power grids. In important occasions, such as broadband switch rooms, computer rooms, etc., the 22kV ring network cabinet is also an essential power equipment. It can play an important role in isolating, distributing, and protecting circuits, ensuring the safe, reliable, and stable supply of power supply
