Customized Power Transformer Solutions: Precision Engineering for Specialized Grids & Extreme Environments
In complex international power projects and special industrial applications, standard‑spec equipment often fails to meet all unique requirements. Whether facing non‑standard voltage levels, limited installation space, or extreme operating environments, Rockwill delivers full‑range customized power transformer solutions built on profound technical expertise. We solve the pain point of “standard product incompatibility” and provide highly reliable, non‑standard power protection for customers worldwide.
1. Solve Your Non‑Standard Power Distribution Challenges
Overseas buyers and system integrators commonly face these technical bottlenecks during project startup:
- Global Voltage Variations: Many regions (North America, Central/South America, parts of Africa and Southeast Asia) use special voltages such as 6.6kV, 11.5kV, 13.8kV, 34.5kV, where standard transformers cannot be directly connected.
- Frequency Differences (50Hz / 60Hz): Different grid frequencies require completely different core flux density designs. Improper design leads to excessive losses or severe overheating.
- Mismatched Capacity & Impedance: Standard kVA ratings cannot cover special high‑power demands, or custom short‑circuit impedance is required to match the short‑circuit capacity of existing systems.
- Space Constraints: Incoming arrangements (side‑in top‑out, cable compartment direction) or extremely tight installation spaces rule out standard enclosures.
- Extreme Operating Conditions: Derating of air insulation at high altitudes (>2000m), coastal salt spray corrosion, and strict requirements for insulating oil fluidity in extremely cold regions.
Example: 13.8kV Non‑Standard Power Transformer vs 10kV Standard Power Transformer

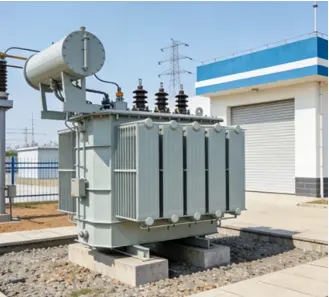

13.8kV Non‑Standard Power Transformer

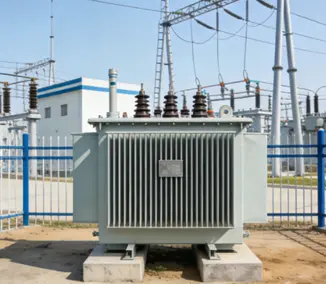

10kV Standard Power Transformer
2. Rockwill Core Customization Capabilities
Our engineering team delivers professional solutions for customized oil‑immersed power transformers within a short lead time based on your datasheet and specifications.
- Non‑Standard Capacity: Custom designs such as 1350kVA, 3150kVA to meet motor starting or production line expansion requirements.
- High / Low Impedance Design: Precisely adjust short‑circuit impedance to match the interrupting capacity of existing switchgears and ensure system safety.
Extreme Environment Adaptation Design
- High‑Altitude Enhanced Insulation: Increase creepage distance of external bushings for low‑pressure, high‑altitude environments.
- C5‑M Anti‑Corrosion Coating: Heavy‑corrosion protection compliant with ISO 12944 for offshore platforms and chemical plants, greatly extending enclosure life.
- Special Insulation Fluid: Synthetic ester or vegetable oil (FR3) for high‑flashpoint, high‑fire‑rating, eco‑friendly green transformers.
| Application Scenario | Customer Core Demand | Rockwill Custom Solution Advantages |
|---|---|---|
| Overseas Grid Upgrade | Match special voltages (e.g., 13.8kV/480V) | Non‑standard ratio design fully compliant with IEEE/ANSI/AS standards. |
| Industrial Rectifier Support | High harmonics & multi‑pulse rectification | Rectifier transformers with harmonic‑resistant winding structure. |
| High‑Altitude / Extremely Cold Regions | Insulation derating & low‑temperature startup | Enhanced external insulation and low‑temperature insulating oil. |
| Space‑Limited Retrofit | Special‑shaped tank & defined terminal positions | 1:1 structural customization without modifying substation foundations. |
4. Why Choose Rockwill for Non‑Standard Customization?
Professional Engineering Consulting (E‑E‑A‑T)：We not only manufacture transformers but also provide one‑stop engineering consulting. From initial SLD review to final parameter locking, our expert team ensures an ideal balance between technical feasibility and cost efficiency.Strict Type Test Validation</h3>
Every customized transformer undergoes rigorous factory testing to guarantee safety:
- Partial Discharge (PD) and lightning impulse tests for enhanced insulation designs.
- Full‑load temperature rise test to verify thermal management under non‑standard losses.
- Short‑circuit withstand capability verified per IEC 60076‑5.
Flexible Delivery & Support：For research projects, emergency mine replacement, or special test platforms, we support flexible MOQs and optimize supply chains to shorten lead times, ensuring on‑time project commissioning.
Start Your Custom Transformer Journey：If you have special parameter requirements or struggle to find suitable standard products, contact Rockwill. We provide end‑to‑end customized solutions from design to certification.
- Submit Your Datasheet – Get instant preliminary technical advice and sketch.
- Request Non‑Standard Case Book – View special voltage / structure examples for global customers.
- Consult Senior Engineer Online – Discuss challenges in special voltage, high impedance, or extreme environment adaptation.
