Rural Power Grid Upgrade: High-Reliability Power Transformer Solutions
In the global effort to achieve universal energy access, rural areas face unique engineering challenges: long-distance power transmission, severe voltage fluctuations, and harsh operating environments. Rockwill provides high-efficiency power transformers, designed to deliver stable electricity supply for remote communities and off-grid microgrids.
1. Core Challenges in Rural Power Grid Expansion
Power infrastructure development in remote areas differs significantly from urban environments, with major pain points including:
- Voltage Instability: High impedance of long-distance lines causes severe voltage drop at the end of feeders.

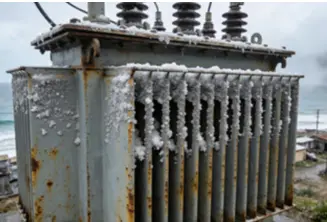

- Extreme Environmental Stress: Equipment must withstand high humidity, coastal salt spray, and wide temperature variations to avoid premature aging.
- Difficult Operation & Maintenance (O&M): Remote locations lead to slow emergency response and high maintenance costs.
- Total Ownership Cost (TOC): High-efficiency equipment is essential to minimize long-term power losses (no-load losses).
2. Technical Solution: High-Efficiency Oil-Immersed Power Transformers
For rural electrification projects, oil-immersed power transformers remain the industry mainstream, offering excellent heat dissipation, self-recovering insulation, and strong overload capacity.
Core Technical Features
- Advanced Core & Winding Design：Uses high-permeability cold-rolled grain-oriented (CRGO) silicon steel to minimize no-load losses, critical for rural grids where transformers operate 24/7 at light load.
- Hermetically Sealed Corrugated Tank：Maintenance-free structure that effectively blocks air and moisture ingress, eliminating the need for oil purification and greatly extending service life.
- Enhanced Insulation Strength：Upgraded insulation design to withstand lightning impulse (BIL) common in open rural and mountainous areas.
Key Technical Parameters (Compliant with IEC Standards)
| Parameter | Specification | Standard |
|---|---|---|
| Rated Voltage | 10kV, 11kV, 20kV, 33kV, 35kV | IEC 60076 |
| Protection Class | IP54 (main body) / IP65 (control box) | IEC 60529 |
| Insulation Class | Class A (105℃) | IEC 60085 |
| Temperature Rise Limit | Top oil ≤ 60K; Winding ≤ 65K | IEC 60076-2 |
| Vector Group | Dyn11, Yzn5 (customizable) | IEC 60076 |
| Corrosion Protection | C4 / C5-M (for high-salt environments) | ISO 12944 |

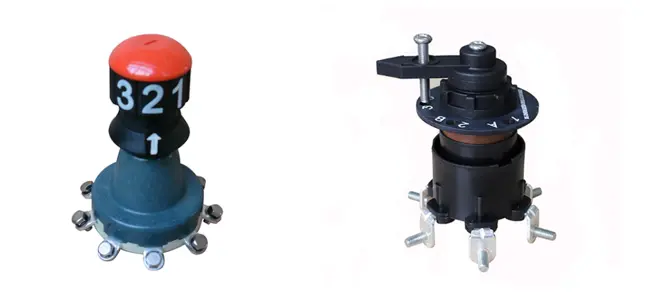

3. Voltage Regulation: Off-Circuit Tap Changer (OCTC)
To resolve voltage drop along long feeders, Rockwill transformers are equipped with high-precision off-circuit tap changers.
- Adjustment Range: Standard ±2×2.5% or ±5% manual adjustment.
- Function: Technicians can calibrate end voltage based on local grid conditions, ensuring stable power supply and extending equipment life.
4. Application Scenarios & Equipment Selection
| Application Scenario | Recommended Equipment | Core Advantages |
|---|---|---|
| Agricultural Irrigation | Three-phase oil-immersed transformer | Strong overload capacity during motor startup |
| Remote Village Power Supply | Pole-mounted transformer | Space-saving, easy installation, excellent lightning protection |
| Hybrid Microgrids | Transformer for wind-solar power systems | Low harmonics, compatible with inverter output |
5. Why Choose Rockwill for Rural Projects?
Technical & Compliance Strengths
- High Energy Efficiency: Fully compliant with IEC 60076 and IEEE C57.12.00, saving over 30% energy compared to conventional models.
- Short-Circuit Withstand: All products designed per IEC 60076-5 to resist mechanical stress under short-circuit conditions.
- Authoritative Certifications: ISO 9001/14001/45001 certified, with complete third-party type test reports.
Logistics & After-Sales Service
- Compact Structure: Optimized dimensions for easy transport on rural unpaved roads.
- Global Support: Professional installation guidance and 24-hour remote monitoring solutions
Accelerate Your Rural Electrification Project
Rockwill is committed to bridging the energy gap with reliable, high-performance power equipment. Our engineering team provides customized layout plans and CAD drawings based on your grid requirements.
- Request a Quote – Customized solution within 24 hours.
- Download Brochure – Full specifications for 10kV–35kV distribution transformers.
- Consult an Expert – Discuss project environmental challenges with our team.
