Outdoor Overhead Line Automatic Circuit Recloser Basic Practical Solution：For General Distribution Networks

1.Background & Core Pain Points

General outdoor overhead distribution networks undertake basic power supply tasks, and currently face four major pain points:

• Frequent faults & slow recovery: Faults occur frequently due to natural environments. Old reclosers have poor stability and low reclosing success rates, resulting in long manual recovery time and affecting user power supply.
• Insufficient equipment reliability: Old equipment has non-standard manufacturing, substandard arc extinguishing and insulation performance, easy aging and jamming, and poor adaptability, failing to meet basic operation requirements of 12kV~24kV and 400A~1250A.
• Low and non-standard O&M efficiency: Weak grassroots O&M force, lack of standardized processes, incomplete equipment files, blind hidden danger detection, and repeated faults.
• Unbalanced cost-performance ratio: High-end equipment has redundant functions and high costs; low-cost equipment has poor reliability and short service life, neither meeting the demand for "low cost, high reliability".

2.Core Solution

Product Selection: Adaptable & Practical, Balancing Reliability and Cost-Effectiveness

• Parameter adaptation: Rated voltage 12kV~24kV, rated current 400A~1250A, short-circuit breaking current ≥16kA, matching line load and voltage requirements.
• Technical support: Adopts vacuum interrupter technology; insulation level complies with IEC standards (IEC 62271-111); enclosure protection degree ≥ IP65, adapting to outdoor environments and ensuring reliable and universal operation.
• Practical functions: Equipped with basic electronic control unit, supporting 1~2 adjustable reclosing times, with fault detection and local alarm functions.
• Cost-effectiveness priority: Service life ≥15 years, failure rate ≤0.5 times/year, standardized accessories, reducing procurement and O&M costs.

Installation & Commissioning: Standardized Construction for Reliable Operation

• Pre-installation Preparation：On-site survey to confirm compliant installation location and matched parameters; inspect equipment and accessories; implement construction safety protection.

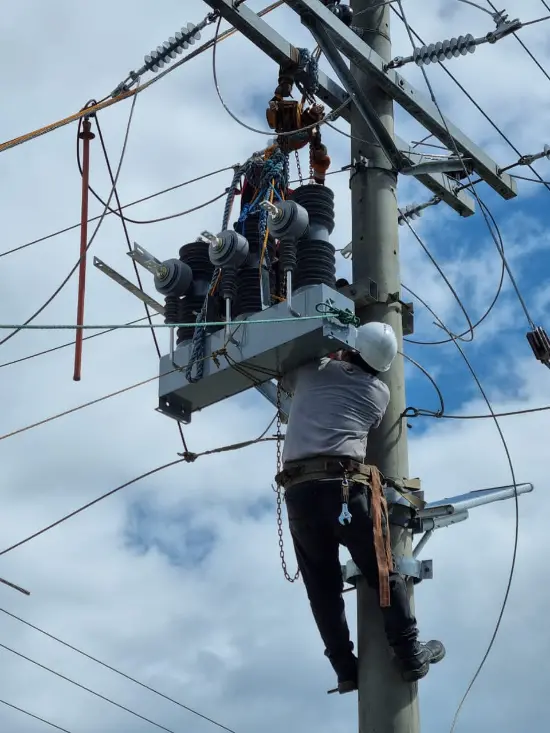

• Standardized Installation：Pole-mounted installation at height ≥4.5m with firm fixation; standard wiring and earthing with earthing resistance ≤4Ω; sealed and waterproof treatment for enclosure and wiring points.

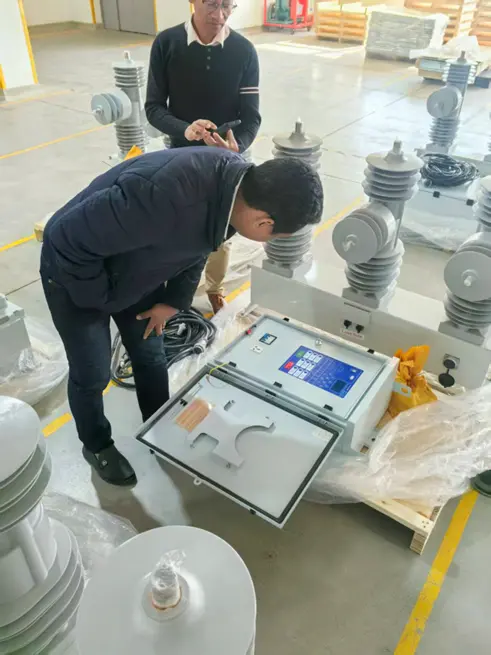

• Commissioning & Acceptance：Adjust reclosing parameters; conduct no-load, short-circuit and reclosing tests; organize tripartite acceptance, file records and establish equipment archives.

Operation & Maintenance: Standardized Management for Higher Efficiency & Lower Costs

• Basic Inspection Mechanism：Routine inspection every 6 months, special inspection after extreme weather; focus on sealing, insulation, wiring and earthing; complete and file inspection records.
• Fault Handling Process：Local alarm activated on fault; transient faults automatically restored by reclosing; permanent faults handled manually before reset; record and analyze fault information.
• Equipment Maintenance & Archives Management：Comprehensive annual maintenance; establish electronic + paper equipment archives; provide special training for grassroots O&M personnel to improve operation skills.

3. Solution Advantages

• Outstanding cost-effectiveness: Focus on basic functions, controllable procurement and maintenance costs, high long-term value.
• Strong adaptability: Matched parameters and outdoor environment, high reclosing success rate, effectively improving power supply reliability.
• Strong implementability: Simple installation and O&M processes, suitable for grassroots teams without high-end equipment or professional teams.
• Standardized & traceable: Full-process standardization, full life cycle traceability, convenient for management optimization.
• High practicability: Targets core pain points, fast implementation, ensuring basic power supply demand.

4. Implementation Plan & Support

 Implementation Plan

• Preparatory stage: Complete survey, selection, procurement and team training.
• Installation & commissioning: Standardized construction, testing, acceptance and filing.
• O&M implementation: Launch standardized O&M, regular training and optimization.

 Implementation Support

• Quality assurance: Qualified products, standardized construction and acceptance, quality traceability system.
• Technical support: Professional technical guidance, regular O&M training.
• After-sales support: Signed after-sales agreement, responsive fault repair and accessory replacement.

5. Summary
