High-precision Outdoor Oil Immersed CT PT Metering Unit-7.2kV 10kV 11kV

Documentation Resource Library

Key attributes

Brand	ROCKWILL
Model NO.	High-precision Outdoor Oil Immersed CT PT Metering Unit-7.2kV 10kV 11kV
Rated voltage	11kV
Rated frequency	50/60Hz
Series	RMR

Product descriptions from the supplier

Description

Product Description

1.RMR Type 7.2kV 10kV 11kV Outdoor Oil Immersed CT&PT Metering Unit

Technical Parameter – Voltage Transformer

Model	Rated voltage ratio	Accuracy class	Rated output	Ultimate output	Rated insulating voltage
RMR-6kV、12kV	3000/100	0.2 0.5	15 30	300	3.6/25/40
	6000/100				7.2/32/60
	10000/100				12/42/75

Technical Parameter – Current Transformer

Rated primary current	Rated secondary output(VA)		Rated short-time thermal current (kA)	Rated dynamic current (kA)
Rated primary current	0.2	0.5	Rated short-time thermal current (kA)	Rated dynamic current (kA)
5-10	10	15	1.0	2.5
10-20			1.5	3.75
15-30			2.4	6.0
20-40			3	7.5
30-60			4.5	11
40-75			8.0	20
50-100			9.0	22.5
75-150			12	30
100-200			16	40
150-300			24	60
200-400			32	80
300-600			60	100
400-800			80	100
500-1000			80	100

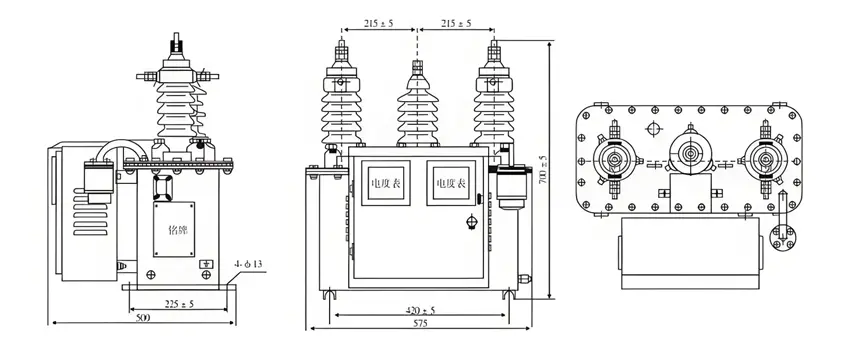

2. Drawings

Outdoor Oil Immersed CT PT Metering Unit-7.2kV 10kV 11kV

Negotiable

Pricing calculator

Model

RMR-11

RMR-10

RMR-7.2
